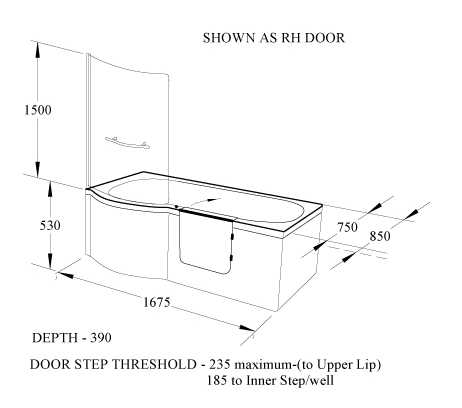

Length 1675 mm, width 750 & 850 mm, height 530 mm.

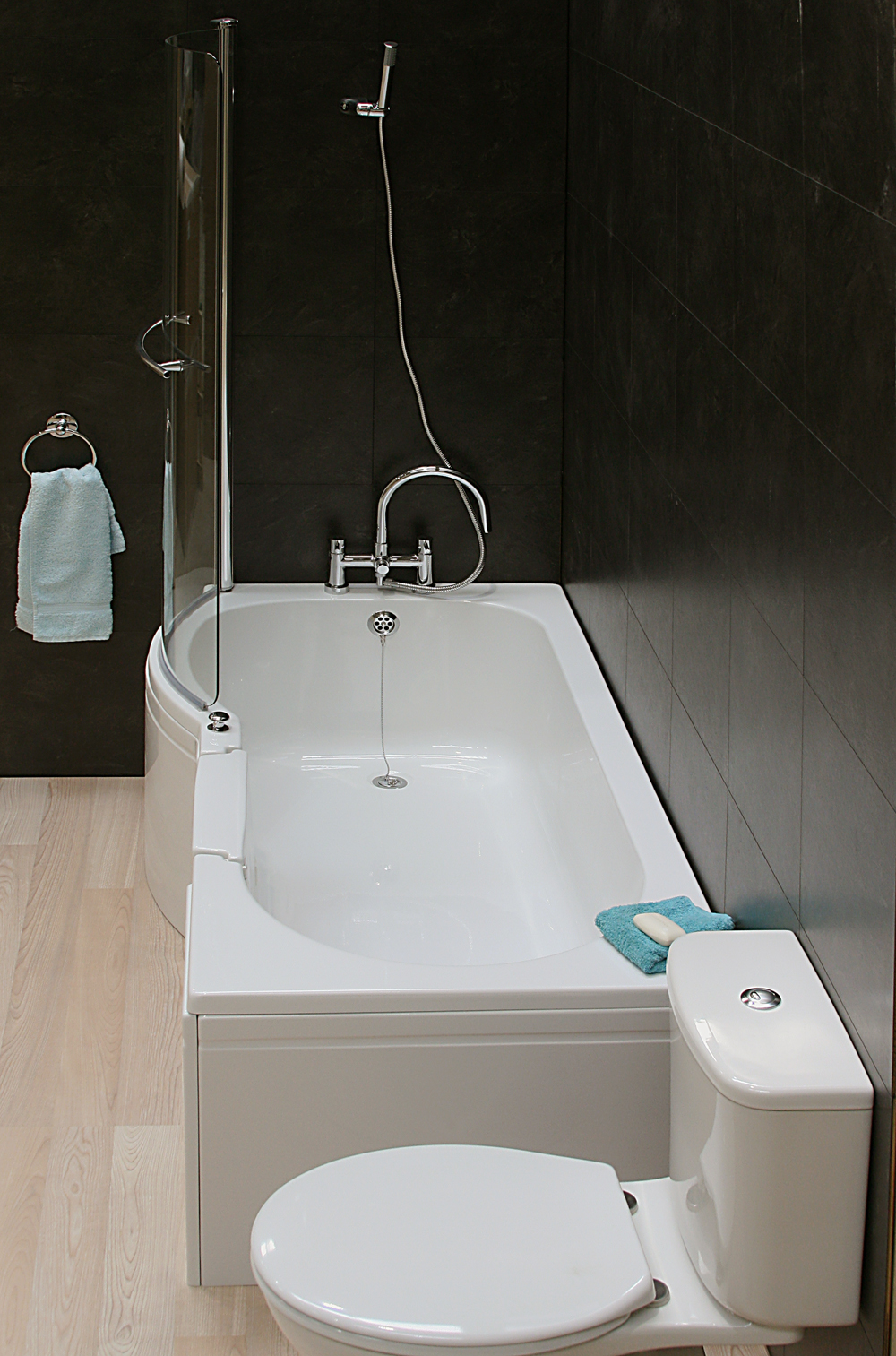

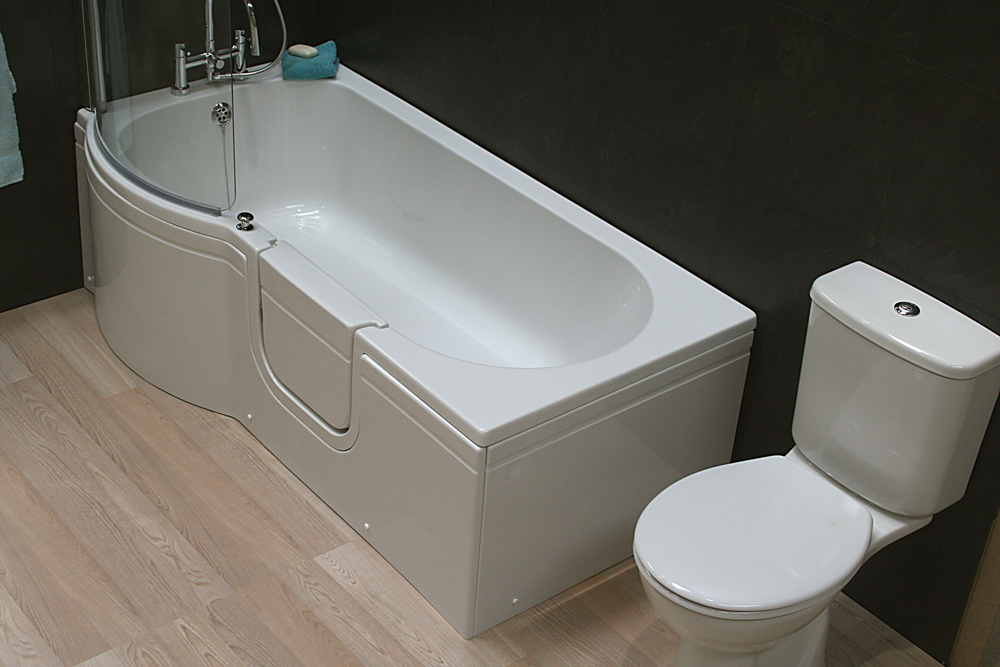

The Diamond Walk-in Bath is a "P" shaped bath, available with a choice of left or right hand entry. The step in threshold is 235 mm (outer).
Each bath is supplied with the following components:-
- Bath (LH or RH door opening - pictures and drawings show RH door) with Front Panel. The End Panel is an optional extra
- Shower Screen
- Twin Waste kit
- 2 x Wall Brackets
Other Items Required (Not suplied)
Thermostatic Valve (TMV22 for high flow rate). MUST BE INSTALLED IN ALL CASES
Bath Taps/Shower mixer.
IMPORTANT NOTES
The bath is supplied with 7 adjustable feet. 5 are fitted with 2 outrigger legs supplied loose.
It has a water capacity of 225 Litres unoccupied. Bath is filled only when user has entered and shut the
door consequently taps must be thermostatically controlled.
Installation is similar as for a standard bath except that twin wastes are supplied to increase
drainage rate & to ensure the bath can be drained if one waste fails. The bath should be installed
rigidly to ensure there will be no movement or sagging of the floor when bath is used.
Consideration should be given to lowering the wastes below the floor level to keep the step
threshold to a minimum to assist customer’s ability to step into the bath. Use only shallow waste
traps.
If fitting in an alcove ensure the bath freely goes into position as sideways pressure can distort the
doorway.
"This bath is manufactured in glass fibre. When handling, proceed with care
and caution, in particular the bath edges. These are more brittle than in acrylic baths"
Standard Fitting Guide.
1) Fit the wall fixing brackets to back of back of the bath timber frame for fixing the bath to
the wall.
2) Secure the 2 loose feet supplied to the plastic sockets underneath the bath.
3) Drill and affix Taps.
4) Fit the 2 wastes, overflows and waste traps supplied.
5) Place bath in position and adjust to minimum height.
Note: It is advisable to fix batten runs on to the floor under the bath feet to avoid
extending the legs to far & to ensure feet sit squarely and flat. On a wooden floor
batten runs (3” x 2” minimum) should be positioned squarely across the floor boards to
spread & support the load.
6) Level bath in all planes using the 7 adjustable feet and lock the feet. Ensure Bath Foot
underneath doorway is cranked up to support bath we.l l
7) Mark wall fixings and plumbing runs.
8) Remove bath, drill in wall fixings where accessible and run plumbing into position.
9) Re-position bath and fix to the floor via all seven bath-feet. Ensure the bath foot under the
doorway is cranked up to support the foot well.
10) Connect plumbing. Refer to fitting guides for the Thermostatic valve and Pump if
supplied.
11) Test plumbing for leaks and pump operation.
12) Fill bath to maximum and leave for about 30 minutes to test the door seal.
13) While the bath seal is being tested position and trim to size the front and side panels.
14) Mark bottom of panels onto floor base. Fix battens along floor behind panels.
15) Refit front and side panels. Drill through bottom into batten and top into bath wooden
frame. Push fit panels onto the retaining clips prefitted on the bath sides. Do not use
Silicone sealant as this prevents service access.
16) Silicone bath rims to walls as necessary.
17) Install shower screen following the instruction sheet packed with the
screen
18) Finally drain bath and leave the Door Open to prevent over compression of the seal.
19) Instruct customer on the use of the bath.
- Refer to 'Operating/Care and Maintenance Instructions' and leave copy with customer.
- Do not leave door in locked position on completion. Advise customer that the door should be left unlocked when not in use in order to preserve the seal.
